Scanology 3D Scanner
KSCAN-E

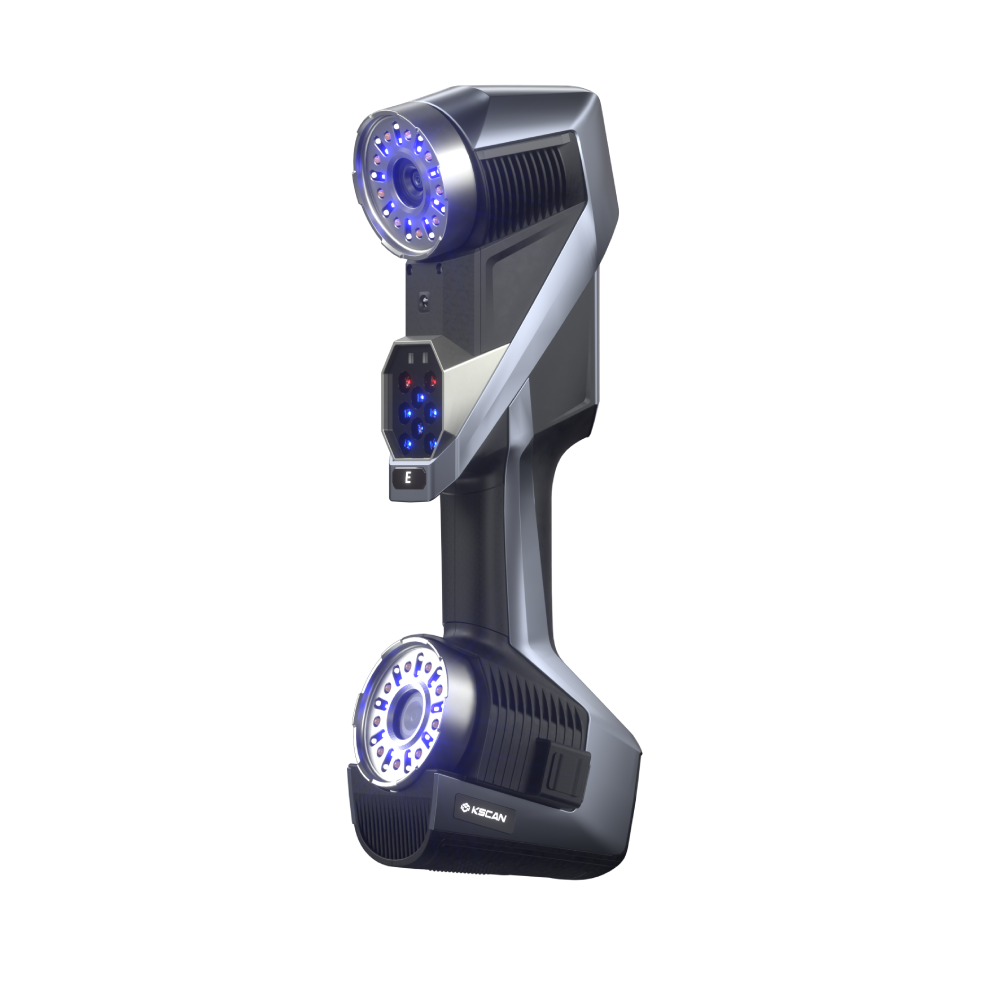

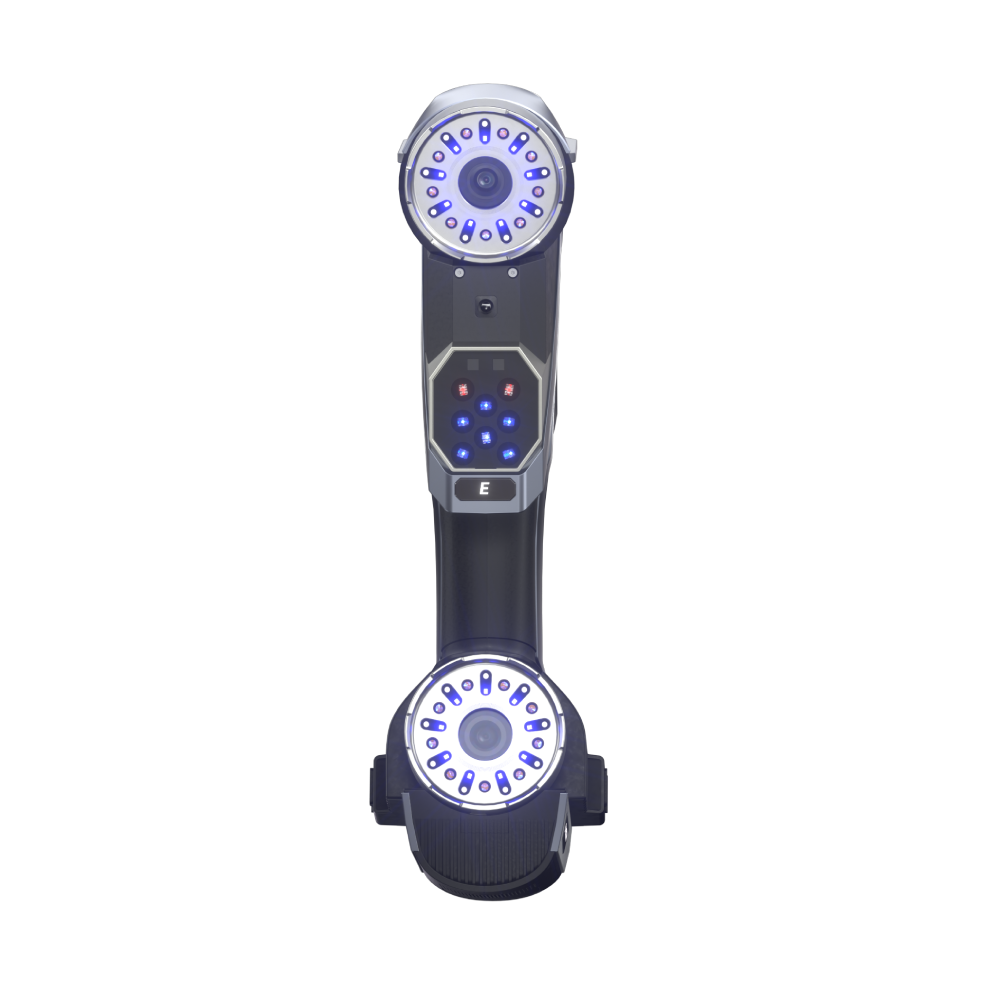

All-in-one 3D scanner: smart and wireless

KSCAN-E: Versátil, Preciso, Potente

The flagship KSCAN-E is an intelligent, wireless, and all-in-one 3D scanner designed to redefine industrial measurement with unmatched precision and efficiency. Whether scanning large surfaces or fine details, its 6 operating modes ensure full-field and high-quality data capture. With a built-in computing module and dual power system, it delivers seamless, wireless operation for maximum flexibility in any environment.

With an accuracy up to 0.020 mm, the KSCAN-E meets the demands of even the most challenging applications. From aerospace and automotive to heavy industry and energy, KSCAN-E delivers a precise, flexible, and intelligent 3D solution, making everything from design verification to quality control smarter and more efficient.

Fully Wireless

KSCAN-E’s lightweight design and one-handed operation make it easy to use, even in complex measurement scenarios. Fully wireless and highly versatile, it’s perfect for locations with limited or no access to power. Whether you are in the lab, at the workshop, or working in the field, you can enjoy true freedom to capture precise 3D data with incredible ease.

Built-in computing module

for on-board data processing

Built-in battery

supports dual power supply cycles

Dual WNIC design

for high-speed data transmission

Powerful Scan at Your Fingertips

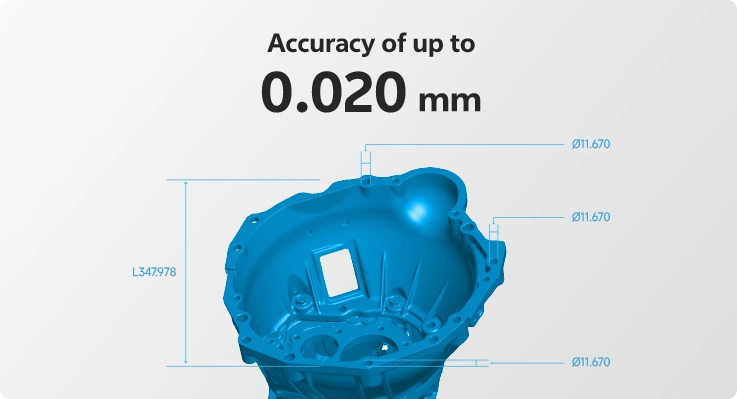

Exceptional Accuracy

With exceptional precision and reliability, this 3D scanner sets a new standard for non-destructive inspection solutions across various industrial applications.

0.020 mm (Accuracy)
0.015 mm + 0.015 mm/m
(Volumetric accuracy when paired with 800-mm precise scale bar)
0.015 mm + 0.012 mm/m
(Volumetric accuracy when paired with the L15 photogrammetry system)

Excellent Detail Capture

Equipped with 17 parallel blue laser lines and high-performance industrial cameras, the 3D scanner offers a resolution of up to 0.010 mm. Combined with DefinSight real-time meshing, it enables users to accurately capture fine features such as gaps and slots, ensuring every detail is clearly presented.

17 parallel blue laser lines
0.01-mm resolution

Excellent Detail Capture

17 parallel blue laser lines
0.01-mm resolution

Scan Anything, Anytime

KSCAN-E is robust, flexible and versatile, ideal for scanning small to large objects wherever you are. With 4×27 quad-cross blue laser lines, the KSCAN-E allows for rapid data capture without compromising accuracy.

Large Parts

The adaptive photogrammetry system is ideal for measuring large parts, delivering high volumetric accuracy even in complex, large-scale environments. It also supports target optimization using a scale bar.

Its infrared large-area scanning boosts efficiency with 38 laser lines, a 1.5 m working distance, and a scan area up to 1440 × 1000 mm.

Fine Details

Hyper-fine scanning with parallel blue lasers, perfect for capturing intricate details of parts such as injection molds and gear teeth with exceptional precision.

Hole & Edge Inspection

High-precision grayscale recognition for various holes and slots.
Supports both laser and grayscale measurements. Ideal for measuring edges of stamping parts and iregular parts.

Complex Grooves

Deep-hole scanning mode with a single laser line easily scans hard-to-measure areas such as engine cylinders and internal grooves of cast parts.

Automated 3D system

It can be paired with SCANOLOGY’s automated 3D inspection system, enabling effortless deployment and intelligent control to conduct automated batch inspections.

Exceptional User Experience

PASO 1

Transport to the site: Compact, carry-on-sized protective case for easy transport. Optional versatile case for storing 3D scanner, scale, and accessories securely.

PASO 2

Wireless Connection:
No cables are needed—just power on the device and router to start using.

PASO 3

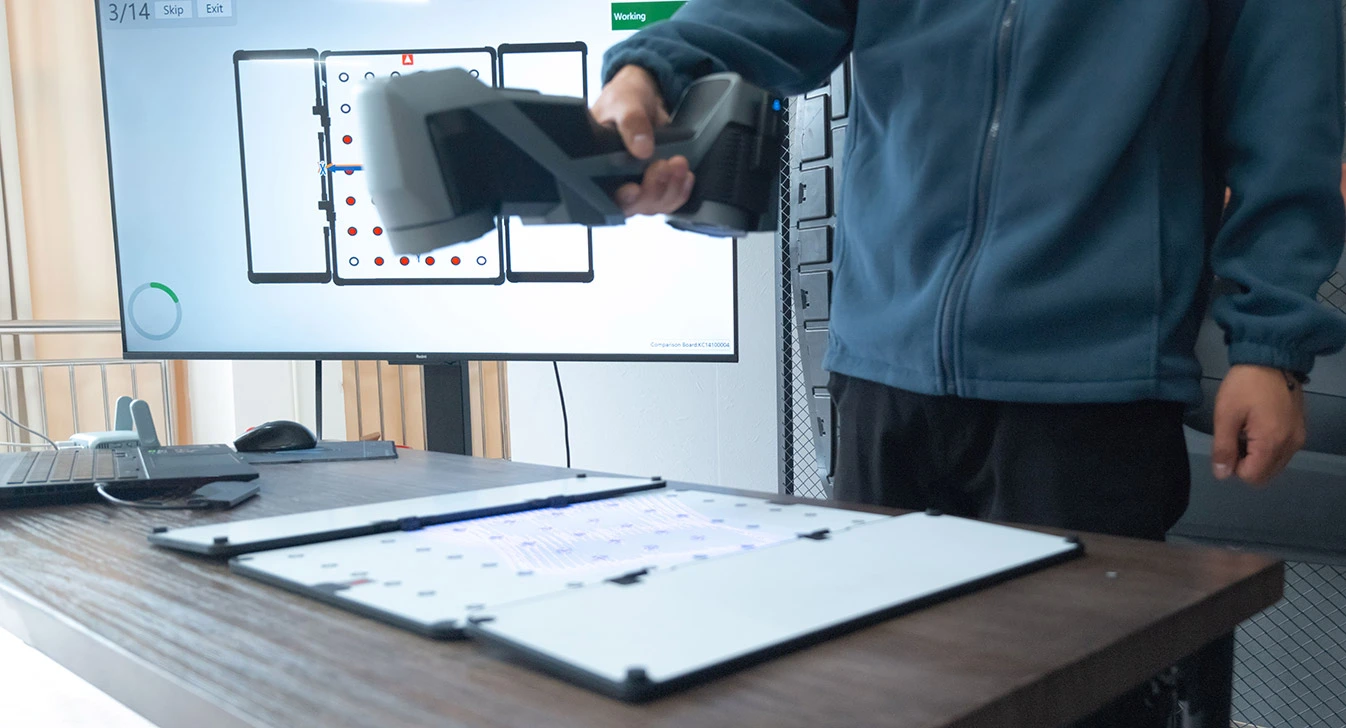

Quick Calibration: Only 20 seconds needed to calibrate.

PASO 4

One-Click Scanning: Smart button control—no need to operate a computer.

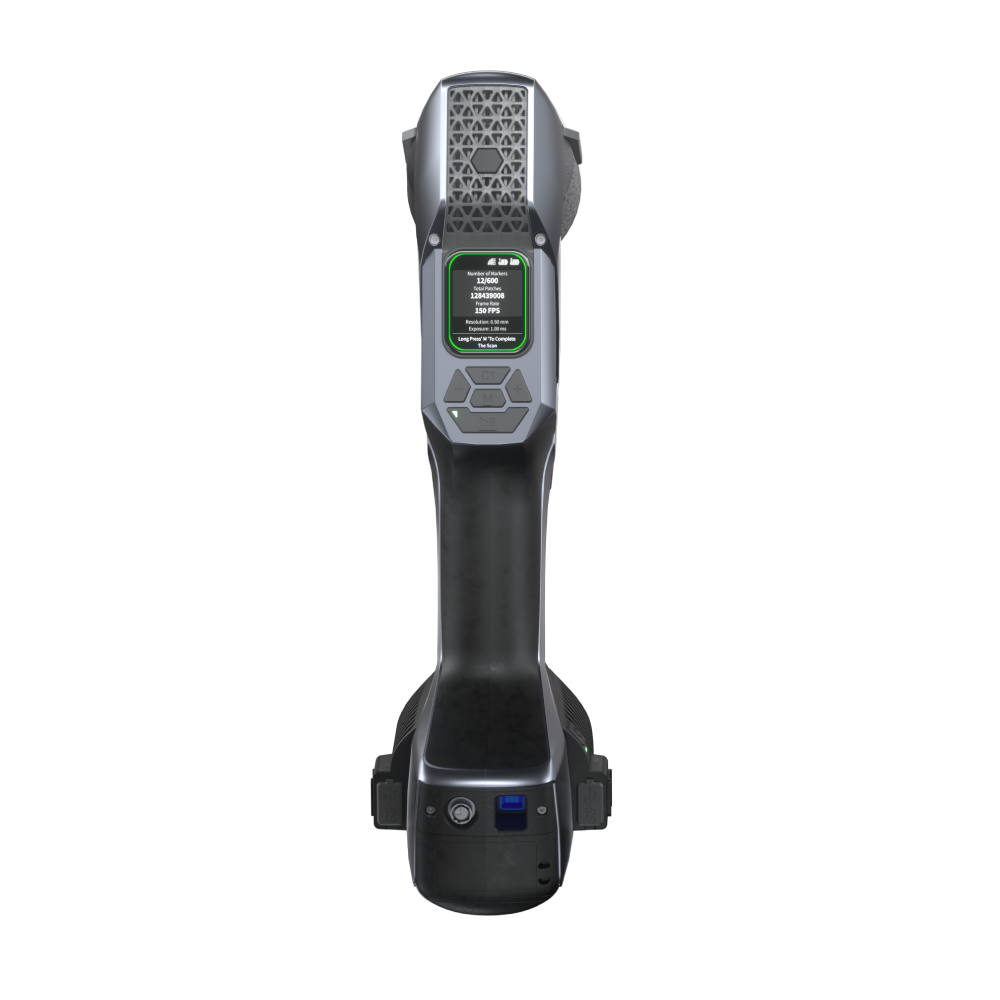

Smart Guidance

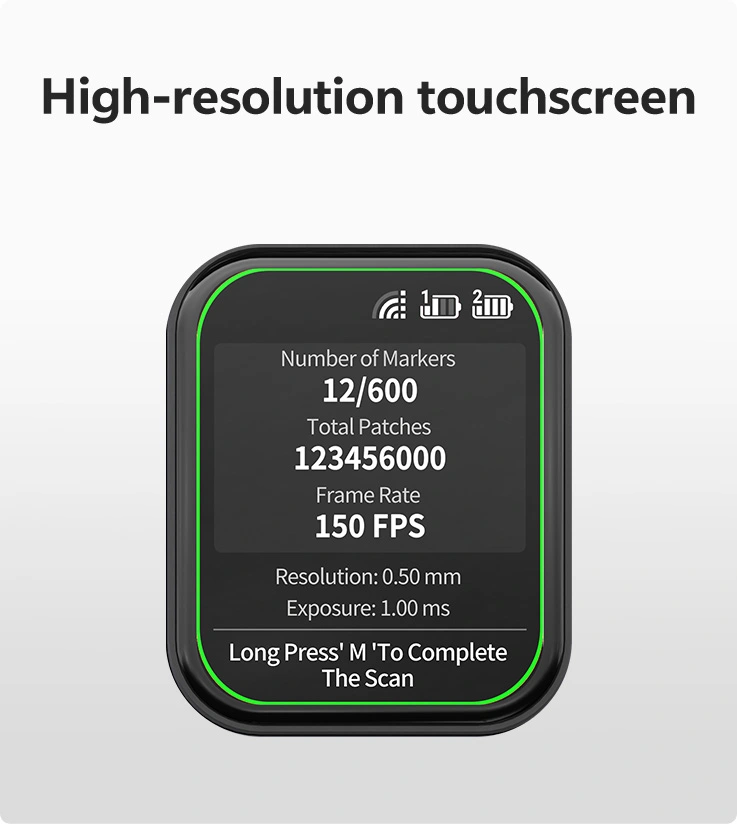

Pantalla tácil incorporda

Guía inteligente

Phone Holder

C1 Custom Button

Technical specifications

Specification	KSCAN-E
Scan Mode	Ultra-fast scanning	108 blue laser lines (Quad Cross Technology)
	Hyperfine scanning	17 blue parallel laser lines
	Large area scanning	19 infrared laser crosses
	Deep hole scanning	1 extra blue laser line
	Hole & edge scanning	Smart edge inspection
	Photogrammetry	Adaptive photogrammetry
Accuracy ⁽¹⁾	0.020 mm
Volumetric accuracy ⁽¹⁾	Standard	0.015 mm + 0.030 mm/m
	Integrated photogrammetry ⁽²⁾	0.015 mm + 0.015 mm/m
	Paired with MSCAN-L15	0.015 mm + 0.012 mm/m
Shape error ⁽¹⁾	Sphericity	0.030 mm
	Flatness	0.050 mm
Scanning rate up to	8,290,000 measurements/s
Scanning area up to	1440 mm × 1000 mm
Working distance	Large area scanning	600 mm~1500 mm (Stand-off distance 900 mm)
	Ultra-fast scanning	200 mm~700 mm (Stand-off distance 320 mm)
	Hyperfine scanning	150 mm~300 mm (Stand-off distance 220 mm)
Object size	0.05 m ~ 8 m
Laser class	ClassⅡ (eye-safe)
Resolution up to	0.010 mm
Dimensions	344 mm × 124 mm × 99 mm
Connection	Interface mode	USB3.0 Type-B
	Wireless standard	Wi-Fi 6, 802.11a/b/g/n/ac
	Wireless connection	Supports Dual WNIC
	Intelligent and wireless mode	Supported
	Uninterrupted power supply	Supported
Environment adaptability	Operating environment	Fanless, suitable for workshop environments
	Operating temperature range	-10°C – 40°C
	Operating humidity	10% – 90% RH
	Protection rating	IP50
Patent	CN204329903U, CN104501740B, CN104165600B, CN204988183U, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204963812U, CN204902785U, CN204902790U, CN106403845B, CN209197685U, CN209263911U, CN106500627B, CN106500628B, CN206132003U, CN206905709U, CN107202554B, CN209310754U, CN209485295U, CN209485271U, CN305446920S, CN209991946U, US10309770B2, KR102096806B1, KR102209255B1, US10914576B2, CN113470180B, CN113218417B, CN113063370B, CN218411073U, CN113310427B, CN113074659B, CN218772495U, CN113473034B, CN115830249B, CN219829786U, CN116206069B
(1) ISO 17025 accredited: Performance is evaluated based on ISO 10360-13, VDI/VDE 2634 Part 3 and JJF1951 specifications. (2) Paired with 800-mm high-precision scale bar. *Our company reserves the right to interpret and modify the parameters and images in this manual within the scope of law.
