3D Printer Pellet-Pellet

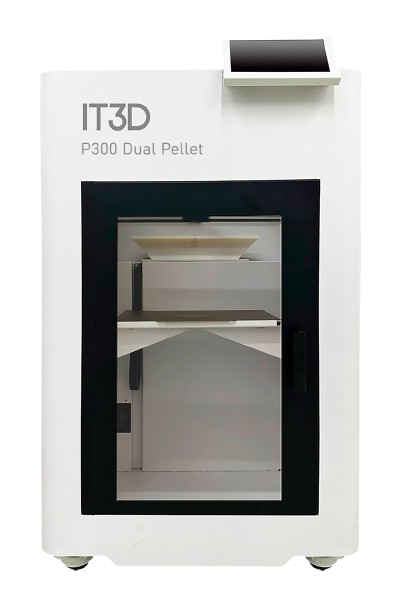

IT3D P300 Dual Pellet
IT3D P300 Dual Pellet
The IT3D P300 Dual Pellet Printer is the ideal solution for additive manufacturing with pellet materials. Its unique double independent pellet extruder system allows working with a wide range of materials, optimizing production processes. In addition, this professional 3D printer is not only efficient and cost-effective, but also contributes to the circular economy, allowing the use of post-consumer recycled plastics. Thus, it facilitates the transformation of plastic waste into useful products, promoting sustainability and reducing environmental impact.
With a printing volume of 200 x 300 x 300 x 450 mm, the IT3D P300 Dual Pellet printer guarantees high quality parts and flexibility in material handling. Its closed design and resume function after power outages ensure precision, reliability and efficiency, optimizing production processes and minimizing errors, which favors sustainability in every project.
High Performance Ceramic Materials
The IT3D P300 Dual Pellet allows the use of ceramic-filled materials, ideal for advanced research and development.
Advantages of the IT3D Pellet Extruder: Manufacturing with Advanced Materials
If you are looking for the best solution for 3D printing with pellets, the IT3D P300 Dual Pellet extruders mark a before and after in additive manufacturing. By working directly with pellets, the need to use filament materials is eliminated, thereby increasing versatility in the use of advanced and recycled materials.
Principal Benefits of the IT3D Pellet Extruder
- Manipulation of complex materials:Compatible with a wide range of technical materials such as Inox 316L, PA12 30% CF, PC+20% CF, PEKK CF, PC-PTFE and many more.
- Maximum die temperature: 300 ºC, which allows the extrusion of a wide variety of high performance materials.
- Advanced temperature control: The two extruders each have dual temperature control, which ensures homogeneous melting of the material, improving inter-layer adhesion and final part quality.
- Sustainability:Facilitates the use of recycled polymers, promoting a more environmentally friendly production process.
- Adjustable nozzles: Available in different sizes (0.4 mm | 0.6 mm | 0.8 mm | 1.0 mm | 2.0 mm) to adapt to different printing needs.
From Waste to Resource:
The 3D Printer for the Circular Economy
The IT3D P300 Dual Pellet is an additive manufacturing platform focused on the valorization of recycled materials in 3D printing processes. This system enables the direct extrusion of plastics in flake or pellet form, allowing for the reuse of post-consumer waste as technical raw material, without requiring prior conversion into filament.
Thanks to its ability to process non-standard and recycled materials, the P300 is an effective tool for circular economy strategies applied to additive manufacturing. Its architecture is designed to integrate into technical recycling processes, promoting the reduction of environmental impact associated with plastic use, while enabling a scalable, efficient, and responsible production in terms of material use.
This approach not only allows for the direct use of plastic waste, but also advances research and optimization of new recycled or hybrid materials for industrial and sustainable development applications.
Reduction of environmental impact
Transforms plastic waste into new products.
Circular Economy
Circular Economy
Efficient production
Less waste of resources, higher productivity.
Compatibility with advanced materials
Compatibility with advanced materials
Sustainability
Contribute to a greener future by reusing materials.
Scalability
Ideal for large parts or series where the filament does not yield.
Innovation in 3D Printing with Advanced Materials
The IT3D P300 Dual Pellet printer arrives as an advanced solution for 3D printing with pellets, designed for handling all types of materials, from the simplest to the most technical or recycled. Its double independent head system and its compatibility with a wide range of polymers make it the perfect choice for research, innovation and advanced production sectors.
Outstanding Features
- Hot bed temperature: Up to 120 ºC, ensuring better adhesion of parts and compatibility with technical and recycled materials.
- Resolution of up to 0.05 mm:Guaranteeing precise details and high quality finishes.
- Automatic leveling: Greater precision and comfort with every print.
- Flexible magnetic base: Facilitates the removal of parts without damaging them.
- 7-inch LCD touch screen: Intuitive interface for easy control of all print settings.
- Advanced connectivity: Compatible with Wi-Fi, Ethernet and USB, allowing remote management of printing processes.
The IT3D P300 Dual Pellet printer offers an innovative solution to work with advanced and recycled materials more efficiently. This 3D equipment optimizes costs and processes, favoring the achievement of a win-win circular economy.
Technical Specifications
| Feature | Details |
|---|---|
| Printing technology | FGD (Fused Granulate Deposition) |
| Printing volume | 200 x 300 x 450 mm |
| Print volume copy | 150 x 300 x 450 mm |
| Printing volume Mirror | 100 x 300 x 450 mm |
| Layer height | 0.1 – 1 mm |
| Operating speed | Max. 180 mm/s |
| Resolution | 0.05 mm |
| Compatible pellet | PLA, ABS, TPU, PETG, etc. |
| Nozzle diameter | 0.4 – 0.6 – 0.8 – 1 – 2 mm |
| Number of extruders | 2 (Pellet – Pellet) – 100% independent |
| Heated chamber | By air fan (max. 60º) |
| Hotbed temperature | Max. 120 ºC |
| Nozzle temperature | Max. 300 ºC |
| LCD screen | 7-inch color touchscreen |
| Filter | HEPA H13 and activated carbon (99.95% of particles) |
| Slicing software | Cura Slicer |
| File formats for slicing | STL, OBJ, Gcode |
| Connectivity | Ethernet cable, Wi-Fi, USB |
| Nominal voltage | 100-120V / 200-240V / 50-60 Hz |
| Output voltage | 24 V |
| Nominal power | 270 W |
| Integrated chamber | Yes |
| Calibration | Automatic |
| Platform | Flexible magnetic bed |
| 3D printer dimensions | 560*510*1020 mm |
| 3D printer weight | 75 kg |
| Weight of 3D printer with packaging | 98.5 kg |
| Operating system | Windows 7 or higher, MAC OS, Linux |
| Totally closed | Yes |
| Resumption of printing after power failure | Yes |
| Pellet extruder with double temperature control | Yes |
IT3D LEARNING
Course: Introduction to Pellet-Based 3D Printing
Develop practical expertise in direct pellet extrusion, focusing on material preparation, screw-driven flow regulation, and process optimization. This course is tailored for professionals aiming to adopt high-throughput additive manufacturing using thermoplastic pellets across diverse industrial and research applications.
Core Modules
- Module 1: Fundamentals of Pellet-Based 3D Printing (FGD)
- Module 2: Pellet Extruder – Components and Operation
- Module 3: Process Parameters and Application Cases
- Module 4: Materials for Pellet Extrusion
Specialization Modules
- Module 1: Circular Economy and Sustainable Manufacturing
- Module 2: 3D Printing with Ceramic Materials
- Module 3: Metal-Based Additive Manufacturing Using Pellets
- Module 4: Biopolymers and Eco-Friendly Alternatives
