Large scale 3D measurements
AXE-B11 3D scanner opens up a new 3D experience to large-scale 3D measurement without an extra device.
The 11 crossed blue lasers greatly increase the measurement rate to 1,300,000 measurements/s. And the single blue laser line can rapidly obtain 3D data of deep hole and inaccessible positions of complex objects.
The built-in photogrammetry function can scan large-scale objects with ultra-high accuracy individually (volumetric accuracy up to 0.020 mm/m and accuracy up to 0.020 mm).
Accurate Measurement
The built-in photogrammetry system improves volumetric accuracy up to 0.020 mm/m and accuracy up to 0.020 mm. AXE-B11 offers professional 3D scanning for large-volumes without an extra device.
Super-efficiency
The ultra-fast speed facilitates the process of measuring large volumes by 1,300,000 measurements/s, saving numerous working time and labor cost.
With 550 mm × 600 mm of scan area, it only needs very few markers to finish the scanning.
Double Scanning Mode

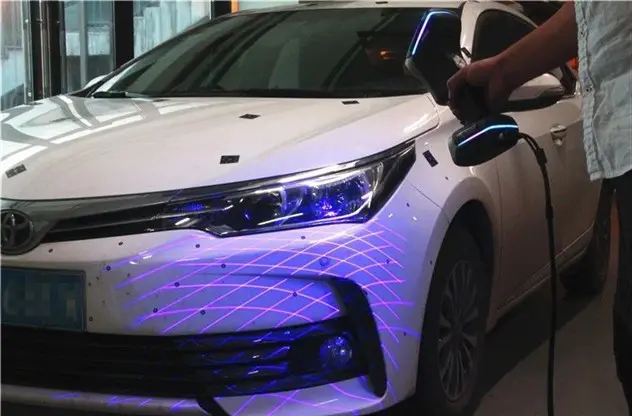

Due to 11 crossed blue lasers + 1 extra blue laser line, AXE-B11 supports high-efficiency mode for large-scale scanning and single line scanning mode meets special requirements, such as deep hole and dead angle inspection.
Versatile Combination
AXE-B11 3D scanner fulfills different measurement demands by freely matching with the accurate reference bar, Helpers engineer kit, etc.
Characteristics
Scanned
Technology: Blue laser
Scanning modes: 11 blue laser crosses (1 extra blue line)
Precision (Single point): 0.020mm
Volumetric Accuracy: 0.020 mm + 0.035 mm/m
Resolution: 0.025mm
Working distance: 300mm
Scan area: 550mm × 600mm
Scan volume:
- Min: 200x200x200mm
- Max: 10000x10000x10000mm
Texture Capture: No
File export format: STL, PLY, OBJ, XYZ, DAE, FBX, MA, ASC
Software & Hardware
Software: ScanViewer
Operating system: Windows 10 64-bit
Connectivity: USB 3.0
Minimum requirements:
Graphics Card: NVIDIA Quadro T1000
Video memory: 4Gb
Processor: Intel Core i7 or higher
RAM: 32GB
Connectivity: USB 3.0
