Scanology 3D Scanner
KSCAN-X
Truly wireless scanning
Powered by SCANOLOGY’s advanced wireless technology and adaptive photogrammetry, the KSCAN-X is an intelligent, wireless large-area 3D scanner that sets a new standard for large-scale 3D measurements.
Featuring wireless operation, ultra-wide scanning area, extended depth of field, and fast scanning, the KSCAN-X offers smooth and high-precision 3D measurements for ultra-large and large to medium-sized parts across industries such as aerospace, heavy industry, and rail transportation. Designed to boost efficiency and deliver accurate quality control, the KSCAN-X is the ultimate solution for advanced manufacturing.
Truly Wireless Scanning

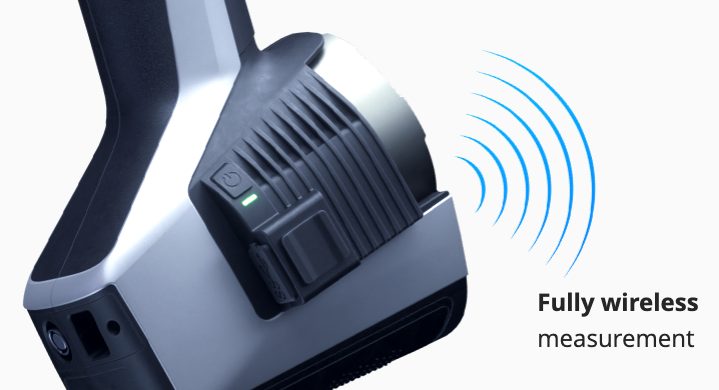

It operates completely wire-free, enabling seamless scanning even in power-limited environments, at heights, or in remote locations. Experience true wireless freedom in 3D measurement.
Robust on-board processing module
Dual-battery system
Dual-WNIC design technology
Wide-Area Scanning, Exceptional Precision

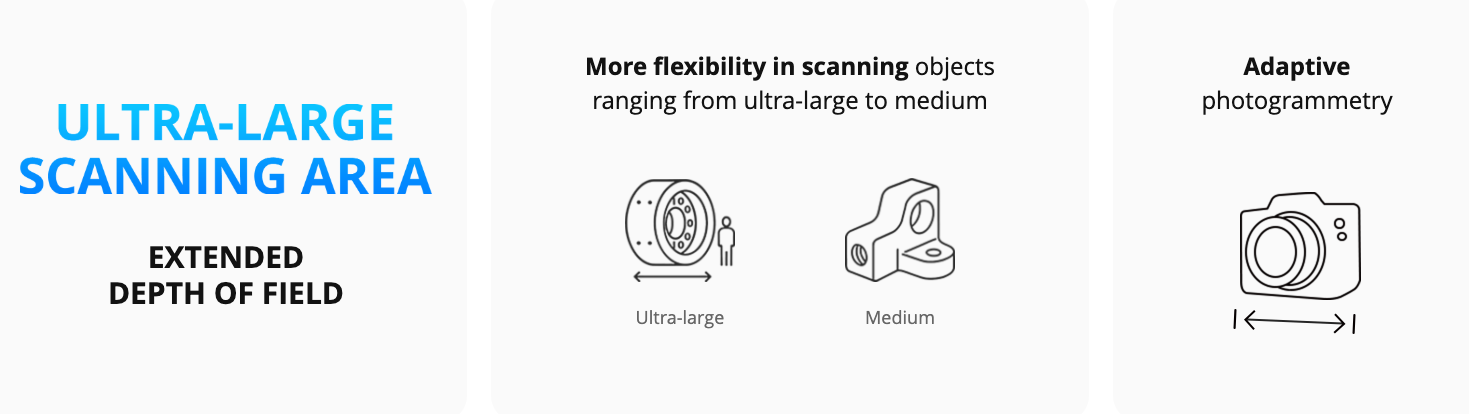

Ultra-large Scanning Area
KSCAN-X, powered by our in-house developed and sophisticated algorithms, offers extensive scanning area of up to 2.6m*1.8m, which is ideal for scanning ultra-large parts.
Ultra-large Depth of field
With a large depth of field ranging from 0.3-2.5m, KSCAN-X ensures precise measurements for everything from medium to ultra-large parts with exceptional quality. Its flexible working distance makes scanning various-sized parts easier and more efficient.
Faster and Smoother

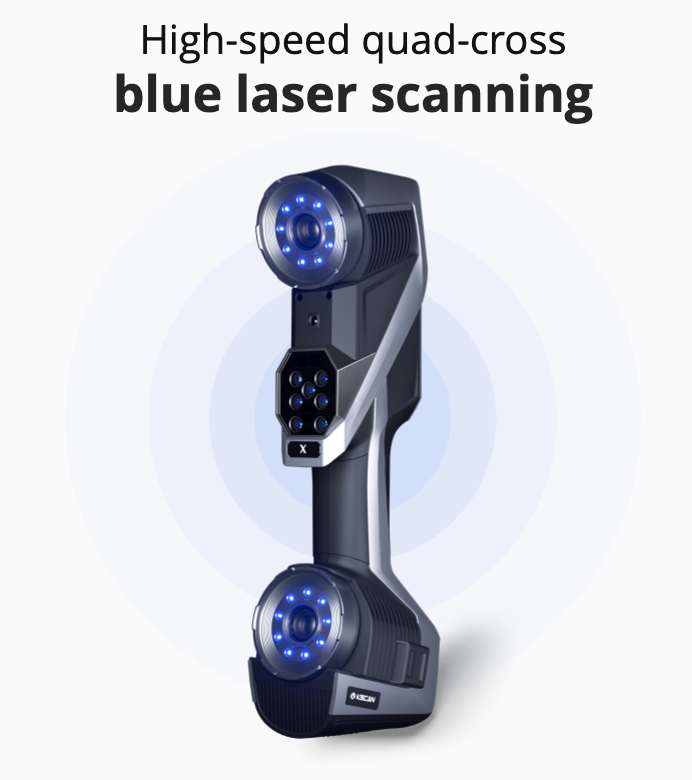

Powered by innovative quad-cross blue laser technology and a high-frame-rate processing chip, KSCAN-X delivers a major leap in measurement efficiency. It delivers fast and precise measurements for large parts even in harsh enviroments.
Fewer markers
Smoother and more efficient scanning
6,450,000 measurements/s
Scanning rate up to
180 FPS
High frame rate
4*21
Quad-cross blue laser lines
Versatile Applications
Users can switch between different scanning modes, handling parts of various materials, shapes, and sizes to meet diverse data acquisition and inspection needs.
Ultra-large Parts
Adaptive photogrammetry
With an advanced adaptive photogrammetry system, KSCAN-X ensures exceptional accuracy over long distances. It eliminates cumulative errors and ensures consistent volumetric accuracy, delivering high-precision results for both large-scale and detailed measurements, even in challenging environments.
Medium to Large-sized Parts
KSCAN-X’s medium-distance scanning mode, with 27 blue laser crosses, is designed for scanning parts ranging from 0.5 m to 2 m. It captures intricate details with up to 0.030 mm accuracy, ensuring precise quality inspection of medium to large-sized parts, even with complex curves or fine features.
Deep Hole Measurement

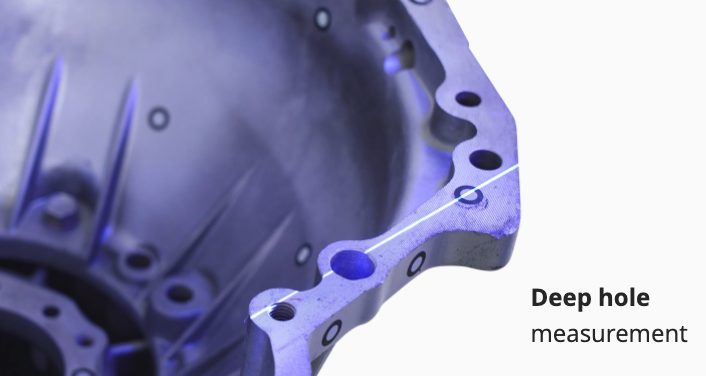

KSCAN-X offers a more compact and lightweight design compared to similar products. Featuring a shorter baseline and a dedicated blue laser line for deep-hole detection, it excels at capturing hard-to-reach areas like pipe interiors and gear teeth, ensuring complete and accurate data collection, even in hard-to-reach areas.
Power and Comfort in One Design
- The well-structured visual frame highlights key components such as the camera lens and laser system, making operation seamless.
- Designed for comfort and efficiency, it ensures a secure grip and fatigue-free use, even during long scanning sessions.
- Designed with ergonomics and aesthetics in mind, KSCAN-X combines sharp, dynamic lines with a balanced and intuitive design.
Portable & Easy to Use
Intuitive and adaptive
Touchscreen interface
Smart Guidance
Supports Real-time Monitoring
Customizable Buttons
Especificaciones técnicas
| Characteristic | KSCAN-X | |
|---|---|---|
| Scan mode | Large FOV scanning | 84 blue laser lines |
| Medium-distance scanning | 54 blue laser lines | |
| Deep hole scanning | 1 extra blue laser line | |
| Photogrammetry | Adaptive photogrammetry | |
| Accuracy (1) | Medium-distance scanning | 0.030 mm |
| Large FOV scanning | 0.075 mm | |
| Volumetric accuracy (1)(2) | 0.075 mm + 0.010 mm/m | |
| Scanning rate up to | 6,450,000 measurements/s | |
| Scanning area up to | 2600 mm × 1800 mm | |
| Working distance | 0.30 – 2.50 m | |
| Object size | 0.5 m – 15 m | |
| Laser class | Class Ⅱ (eye-safe) | |
| Resolution up to | 0.1 mm | |
| Dimension | 344 mm × 124 mm × 99 mm | |
| Inter-camera distance | 235 mm | |
| Connection | Interface mode | USB3.0 Type-B |
| Wireless standard | Wi-Fi 6, 802.11a/b/g/n/ac | |
| Wireless connection | Support Dual WNIC | |
| Intelligent and wireless mode | Support | |
| Uninterrupted power supply | Support | |
| Environment Adaptability | Operating environment | Fanless, suitable for workshop environments |
| Operating temperature range | -10 ~ 40 °C | |
| Operating humidity | 10 – 90 % RH | |
| Protection rating | IP50 | |
| Patent | CN204329903U, CN104501740B, CN104165600B, CN204988183U, CN204854633U, CN204944431U, CN204902788U, CN105068384B, CN105049664B, CN204902784U, CN204963812U, CN204902785U, CN204902790U, CN106403845B, CN209197685U, CN209263911U, CN106500627B, CN106500628B, CN206132003U, CN206905709U, CN107202554B, CN209310754U, CN209485295U, CN209485271U, CN305446920S, CN209991946U, US10309770B2, KR102096806B1, KR102209255B1, US10914576B2, CN113470180B, CN113218417B, CN113063370B, CN218411073U, CN113310427B, CN113074659B, CN218772495U, CN113473034B, CN115830249B, CN219829786U, CN116206069B | |
| (1) ISO 17025 accredited: Performance is evaluated based on JJF1951 specification, VDI/VDE 2634 Part 3 standard. (2) Paired with 800-mm high-precision scale bar. *Our company reserves the right to interpret and modify the parameters and images in this manual within the scope of law. | ||
