Quick and easy
- 5 minutes to prepare for scanning
- Plug and play
- Automatic calibration
- One-click scanning
- Easy and intuitive user interface
- Powered by USB
- Only 1 kg weight
- Includes protective case
ACCESS THE FREE IT3D SCAN ONE TRAINING VIDEOS
IT3D SCAN ONE
Perfect for education, business or cultural preservation.
Easily scan objects for later 3D printing or use in Augmented Reality and Virtual Reality.
High scanning precision.
"Exporting 3D models to CAD/CAM
Free updated software
1 year warranty
Technical support and training material
High quality 3D scanning is now available to everyone!
Obtain precise 3D models at home, at school, at the office, at the cultural center...
High quality 3D models
- Accuracy down to 0.05 mm
- 3D resolution down to 0.13 mm
- Texture capture
- 3D scanning of objects from 3 cm to 1.2 m

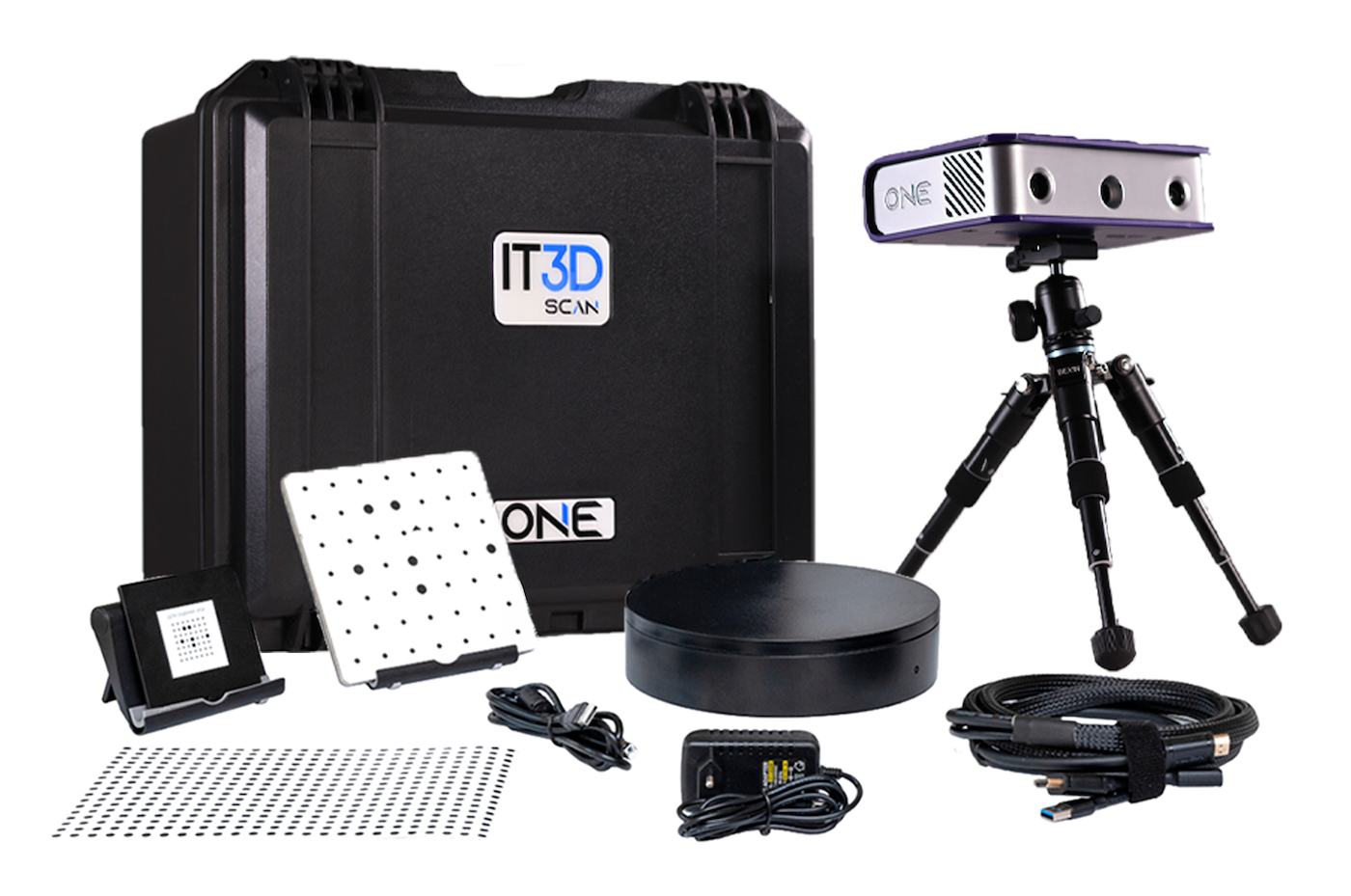

IT3D SCAN ONE - Professional 3D Scanner
Applications
Education and science
- Training
- Research
- Virtual tests
Product design
- Reverse engineering
- Customization
- 3D Documentation
AR/RV
- 3D visualisation
- Animation
- Virtual solution
Quality control
- 3D models for 3D printing
- Exact replication of objects
- Measurement of complex geometry
Art and culture
- Conservation of Cultural Heritage
- Digitisation of exhibitions
- Restoration of collections and pieces
Visualisation
- Animation
Three scanning modes
Scanning on a rotary table
3D scan of an object on the turntable. When an object is rotated, its model fragments are automatically combined.
scan with markers
Automatic alignment of model fragments is achieved with targets applied to the surface of an object. It is used to improve the accuracy of 3D scanning. Supports an external photogrammetry system.
scan by geometry
It is used for 3D scanning of objects that cannot be scanned in any other way. For example, when scanning exhibits in museums. The fragments of the model obtained from different angles are combined according to the characteristics of the geometry of the surface of the object.
Exclusive Bundle
IT3D SCAN ONE includes the Digital Clone license for Augmented Reality and Virtual Reality.
The IT3D SCAN ONE + Digital Clone bundle allows you to combine the advantages of the new IT3D 3D scanner with the wide range of possibilities that Augmented Reality and Virtual Reality bring with it.
A complete solution within everyone’s reach. State-of-the-art technology for easy operation. Perfect for education, product design, retail, art, museums, quality control, industry, etc.
A wide range of processing capabilities
- Automatic and manual alignment with targets and without targets
- Hole filler
- Smoothing of object surfaces
- Reduction of the number of triangles
- Correction of mesh defects
- Automatic removal of small variations and noise
- Other professional functions of IT3D SCAN ScanCenter NG software
Compatible with any 3D printer
- Easy data export for 3D printing
- Adjusting the coordinate system for 3D printing
- Automatic mesh construction with hole filling
- Textured models ready for 3D printing
Export your 3D model to other software for further processing.
IT3D SCAN ScanCenter NG allows you to export 3D models in the most popular formats: STL, OBJ, PLY
(Photo from TVE) (INTEF Logo, Classroom of the Future, Ministry of Education…)
3D scanner Approved by the Ministry of Education and Vocational Training
IT3D SCAN ONE is considered by the Spanish government as the best solution for the educational sector. The 3D scanner is part of the Classroom of the Future project developed by INTEF. This initiative seeks to promote present and future education based on updated technologies.
Technical specifications
| Scanning technology | structured light |
| FOV size, mm | 200 х 150 х 150 |
| Working distance, m | 0.3 |
| Accuracy, mm up to | 0.05 |
| 3D resolution, mm up to | 0.13 |
| Object size | From 3 cm to 1.2 m |
| Ability to capture texture | yes |
| Cameras resolution | 2MP |
| Modes alignment | by markers, by geometry |
| 3D mesh formats | STL, OBJ, PLY, WRL, ASCII |
| Power source for scanner | USB |
| Minimum computer requirements | Intel® Core™ i3/i5 1.8 GHz (Broadwell-based), 8 GB, HDMI, USB 3.0, USB 2.0 for a rotary table |
| Interface |
HDMI, USB 3.0 USB 2.0 for a rotary table |
| Supported OS | Windows 7/8.1/10 64bit |
| Rotary table | yes |
| Platform table diameter | 20 cm |
| Max rotary table load capacity | 20 kg / 44 lb |
| Power source for rotary table | 220 V – 12V/1A |
| Case dimensions | 410 x 330 x 170 mm |
| Weight | 1 kg / 2.2 lb |
| Full package in case weight | 5.5 kg / 12.1 lb |
| Certificats | CE |
| Warranty | 1 year |
