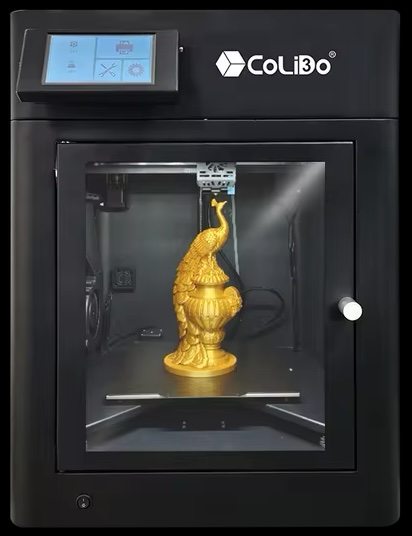

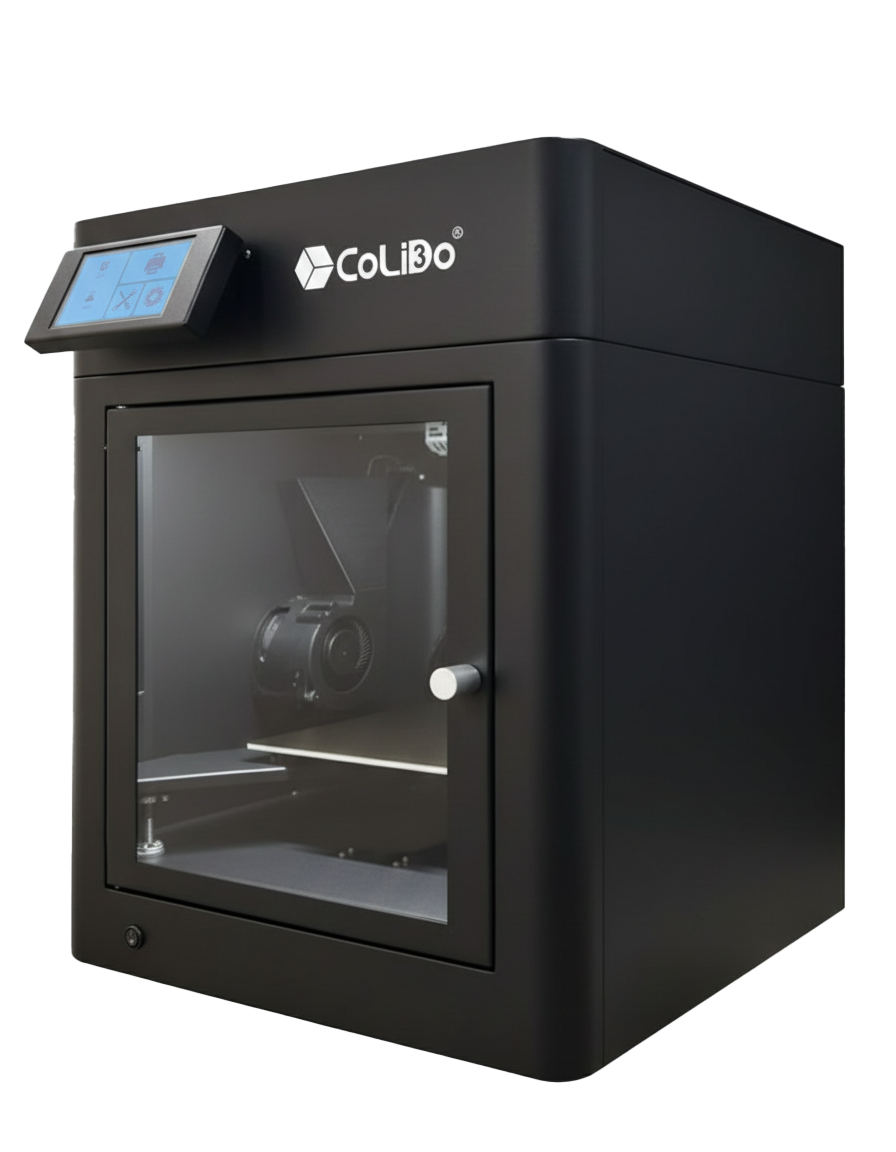

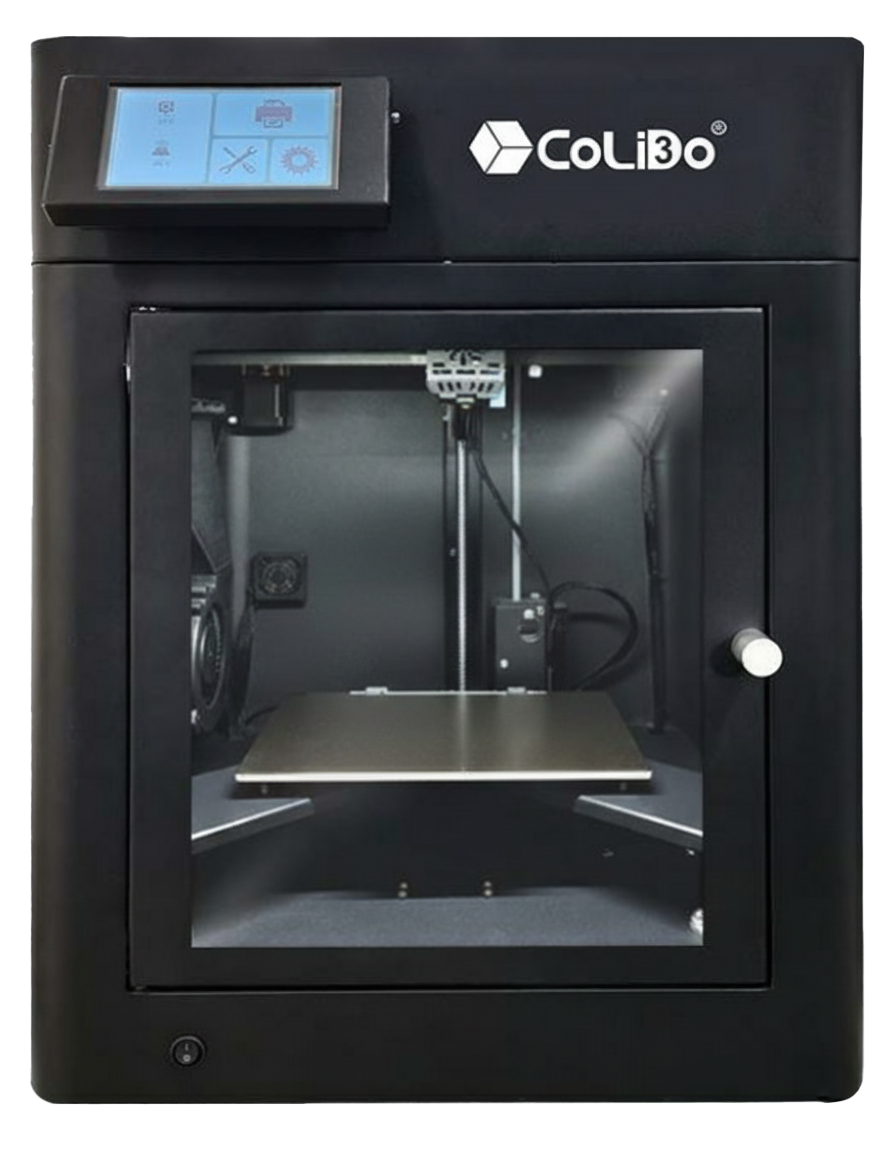

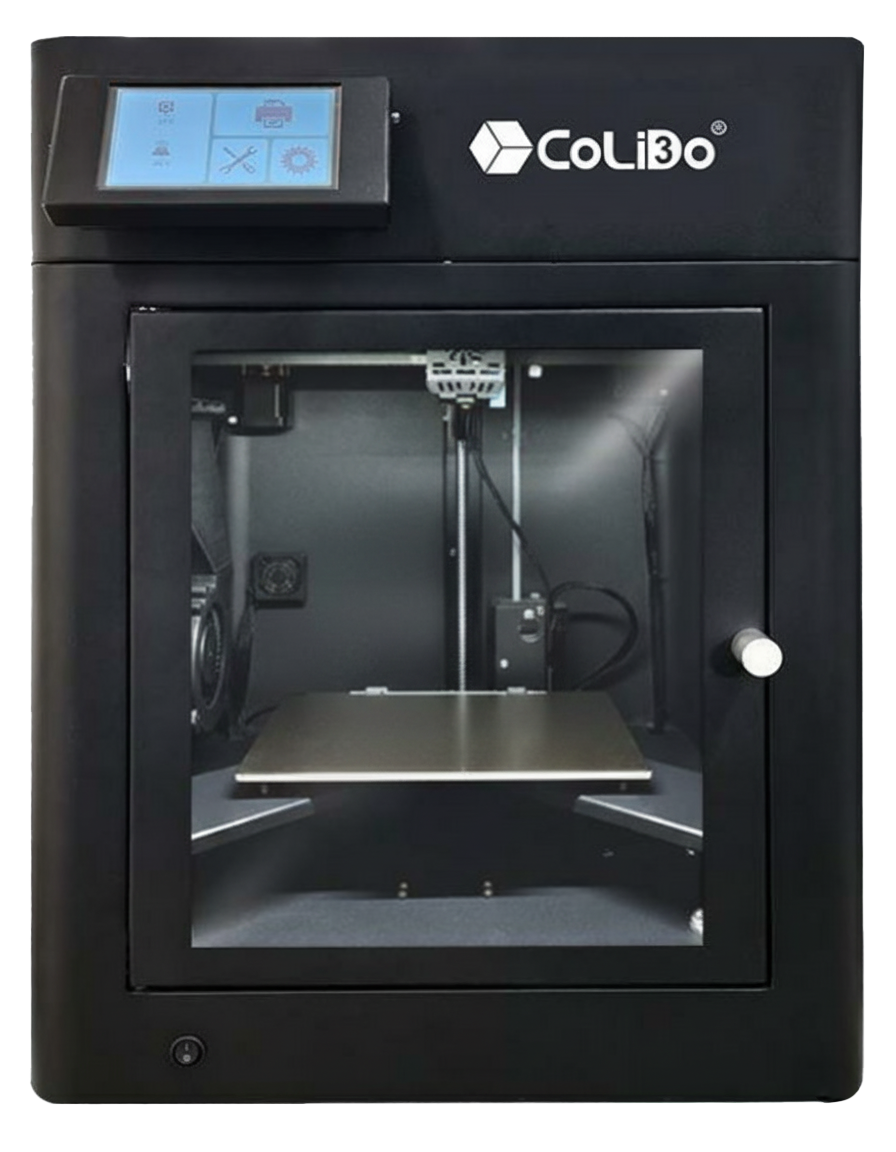

CoLiDo SR1
Simple Operation and Professional-Quality Results
High speed with professional precision
The CoLiDo SR1 3D printer prints at high speed with professional precision. It is designed to take 3D manufacturing to the next level with simple and intuitive operation. With a fully enclosed structure and a focus on reliability, it offers a user-friendly experience and consistent results.
Key Features of the CoLiDo SR1
FDM Printing Technology.
Reaches up to 600 mm/s in printing speed.
Print volume of 220 x 220 x 250 mm.
Printing accuracy from 0.05 to 0.3 mm and resolution of 0.1 mm.
Advanced Engineering for Consistent Workflow
The CoLiDo SR1 has been designed for efficiency and durability, even in demanding work environments.
- High-Speed Architecture: Incorporates the High-Speed Core XY system for fast and precise movements.
- Direct Extrusion: Uses a dual-gear direct extrusion system, ensuring reliable filament feeding.
- Wide Material Compatibility: Compatible with standard and technical materials, including PLA, PETG, TPU, ABS, ASA, and carbon fiber filament.
- Heated Bed and Nozzle:
Maximum heated bed temperature: 120°C.
Maximum nozzle temperature: 300°C.
Equipped with a 0.4 mm nozzle compatible with 1.75 mm filaments. - Printing Platform: Uses a flexible PEI printing plate and features an auto-leveling system for easy adhesion and removal.
Smart Features and Total Connectivity
The CoLiDo SR1 offers you total control and maximum reliability with every print.
- AI remote control: integrated camera for smart monitoring and control from a mobile app (iOS and Android).
- Secure printing: resumption after power outages and filament sensor to prevent failures.
- Full connectivity: card, USB, LAN, WiFi, and cloud access.
- Simple and powerful to use: 4″ touchscreen, Cura with preconfigured profiles, and Klipper firmware for optimized performance.
Everything you need to print with confidence, wherever you are.
Technical specifications
| Feature | Specification |
|---|---|
| Printing Technology | FDM |
| Print Volume (W x D x H) | 220 x 220 x 250 mm |
| Printing Accuracy | 0.05 – 0.3 mm |
| Resolution | 0.1 mm |
| Printing Speed | Max. 600 mm/s |
| Printing Acceleration | Max. 12000 mm/s² |
| Extrusion | Direct drive with dual gear |
| Architecture | High-Speed Core XY |
| Filament Diameter | 1.75 mm |
| Nozzle | 0.4 mm |
| Number of Nozzles | 1 |
| Max Heated Bed Temperature | 120 ºC |
| Max Nozzle Temperature | 300 ºC |
| Compatible Materials | PLA, PETG, TPU, ABS, ASA, Carbon Fiber Filament |
| Print Platform | Flexible PEI Print Plate |
| Leveling Mode | Auto-Leveling |
| Touch Screen | 4” |
| Slicing Software | Cura with Preconfigured Profiles |
| File Format | STL / OBJ / GCODE |
| Operating System | Windows 7 or higher / macOS / Linux |
| Connectivity | SD Card, USB, LAN, WiFi, and Cloud Online |
| Base Firmware | Klipper |
| 3D Printing Procedures | iOS + Android Smartphone App |
| Consumables | 5 x 1 kg PLA Filament Spools |
| Power Supply | 110-220V, 360W |
| Package Size | 480 x 485 x 530 mm |
| Gross Weight | 18 kg |
| Enclosure | Fully Enclosed |
| Fans & HEPA Filters | Integrated |
